P1.953 Indoor Rental LED Display

Model: LED3000‑PH

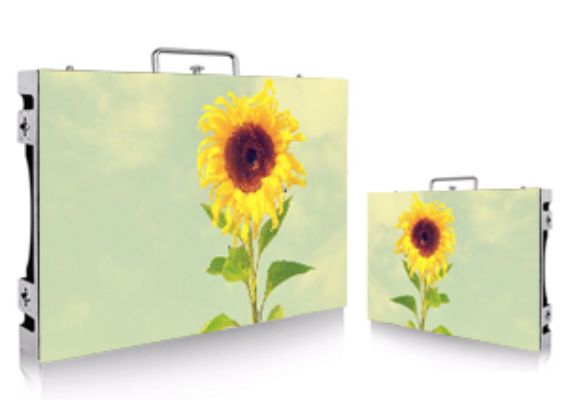

Vican LED3000‑PH P1.953 indoor rental LED display adopts 500×1000mm die‑cast aluminum cabinet (500×500mm optional), ≥3840Hz high refresh rate and IP45 protection grade. Anti‑collision quick‑lock cabinet supports fast assembly and disassembly, perfect for high‑definition indoor stage and conference rental occasions.

Details Specifications

Product Overview

Vican LED3000‑PH P1.953 is high‑definition professional indoor rental LED display. Standard cabinet size is 500×1000mm, 500×500mm cabinet is available as optional choice. The die‑cast aluminum cabinet with anodized anti‑oxidation treatment resists deformation and collision, well‑suited for frequent repeated assembling and dismantling in rental business.

It achieves ultra‑high 3840Hz refresh rate for flicker‑free camera shooting. Optional curved cabinet realizes seamless curved and irregular splicing without extra curve locks. Detachable plug‑in power box, integrated handle‑lock and foldable anti‑collision corners greatly improve on‑site installation efficiency and product durability.

Core Features

Fine Pixel Pitch P1.953: High‑definition performance for close‑view indoor rental scenarios.
Flexible Cabinet Size: Standard 500×1000mm, optional 500×500mm die‑cast aluminum cabinet, anti‑oxidation surface treatment, anti‑collision & deformation‑resistant.

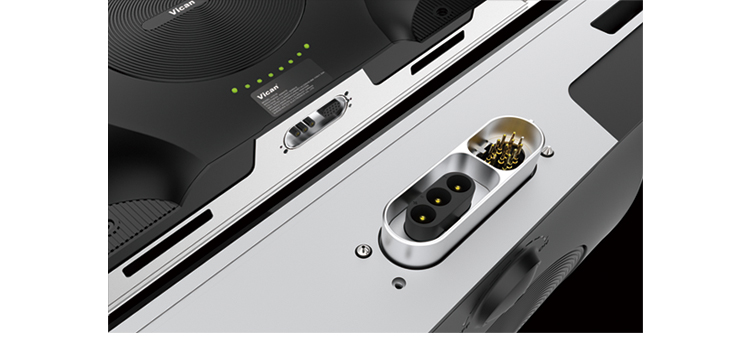

Plug‑in Detachable Power Box: Easy to replace and maintain on site.
Handle‑Lock Integrated Design: Supports single‑person one‑hand quick installation, saving setup labor and time.
Fold‑away Anti‑collision Corners: Protect edge lamp beads and modules during transportation and installation.
Premium Pure‑black Large‑chip LED: Delivers high contrast and outstanding grey‑scale performance.
Optional Curved Cabinet: Realize seamless curved / irregular splicing without curve lock accessories.
IP45 Protection Grade: Adapt to various complex indoor event environments.
Point‑by‑point Calibration: Support single‑point brightness & color correction for uniform screen visual effect.

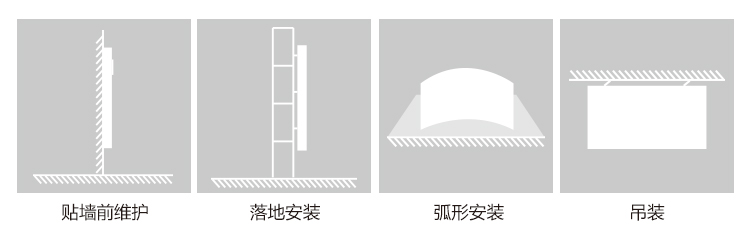

Dual‑way Installation & Rear Maintenance: Front‑rear installable, rear‑access maintenance for flexible site construction.

Typical Applications

High‑end indoor stage performances, large‑scale conferences & summits, press conferences, brand exhibitions, banquet background walls and other high‑definition indoor rental video‑wall projects.

Package & Accessories

Packed in heavy‑duty flight case, 6 pcs 500×1000mm cabinets together with matching accessories per flight case.Supporting accessories include aviation power cables, aviation network cables, installation truss stands and professional power distribution cabinets for rental events.

Note: Specifications subject to change without prior notice. Vican reserves the right of final interpretation for product technical parameters.

Item	Parameter
Product Model	LED3000‑PH
Pixel Pitch	1.953 mm
Pixel Configuration	1R1G1B
Pixel Density	262144 dots/㎡
Module Size	250 × 250 mm
Module Resolution	128 × 128 dots
Cabinet Size	500×1000×70 mm, optional 500×500×70 mm
Cabinet Material	Die‑cast Aluminum
Scan Mode	1/40 Scan
Cabinet Flatness	≤0.10 mm
Gray Scale	14 bit
Protection Grade	IP45
Maintenance Mode	Front‑rear install / Rear maintenance
Brightness	≥600 cd/m²
Color Temperature	3200‑12000K adjustable
Brightness Uniformity	≥98%
Chromaticity Uniformity	Within 0.003Cx,Cy
Viewing Angle(H/V)	≥160° / ≥140°
Contrast Ratio	≥5000:1
Single‑point Color Correction	Supported
Single‑point Brightness Correction	Supported
Driving Mode	Constant Current Driving
Module Max Current	8.5A/DC
Module Supply Voltage	4.5V/DC
Receiving Card	Nova / Colorlight optional
Frame Frequency	50/60Hz
Max Refresh Rate	≥3840Hz
Signal Interface	500‑M custom interface
Input AC Voltage	110‑220V
Peak Power Consumption	≤650 W/㎡
Average Power Consumption	≤200 W/㎡
Pixel Failure Rate	≤0.01%
Working Temperature	-20℃ ~ +80℃
Working Humidity	10%‑95% RH
