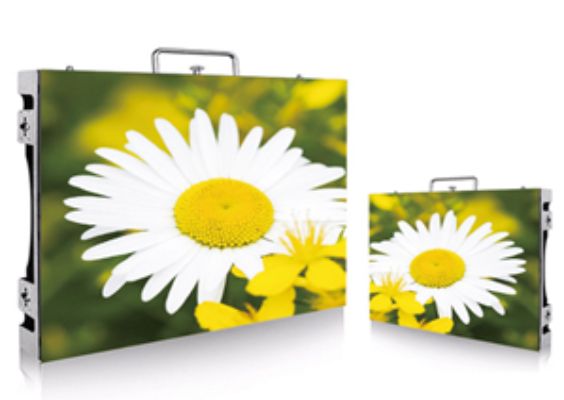

P2.976 Indoor Rental LED Display

Model: LED3000‑PH

Vican LED3000‑PH P2.976 indoor rental LED display adopts 500×1000mm die‑cast aluminum cabinet with optional 500×500mm size. It delivers ≥3840Hz high refresh rate and IP45 protection grade. Anti‑collision quick‑lock cabinet supports fast assembly and disassembly, ideal for indoor stage, conference and exhibition rental events.

Details Specifications

Product Overview

Vican LED3000‑PH P2.976 is a cost‑effective professional indoor rental LED display. Standard cabinet dimension is 500×1000mm, 500×500mm cabinet is available as an option. The die‑cast aluminum cabinet adopts anodized anti‑oxidation treatment, anti‑collision and deformation‑resistant, well‑suited for frequent repeated assembling and dismantling under rental working conditions.

It features ultra‑high 3840Hz refresh rate to achieve flicker‑free camera shooting. Optional curved cabinet enables seamless curved and irregular splicing without extra curve‑lock accessories. Detachable plug‑in power box, integrated handle‑lock and foldable anti‑collision corners greatly improve on‑site installation efficiency and product durability.

Core Features

P2.976 Cost‑effective Pixel Pitch: Balanced visual performance and cost for general indoor rental occasions.
Flexible Cabinet Size: Standard 500×1000mm, optional 500×500mm die‑cast aluminum cabinet, anti‑oxidation surface treatment, anti‑collision & deformation‑resistant.

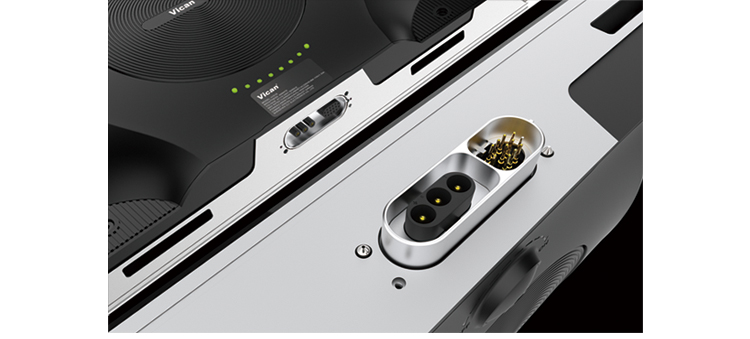

Plug‑in Detachable Power Box: Convenient for on‑site replacement and maintenance.
Handle‑Lock Integrated Design: Supports single‑person one‑hand quick installation, saves labor and setup time.
Fold‑away Anti‑collision Corners: Protect edge lamp beads and modules during transportation and installation.
Premium Pure‑black Large‑chip LED: Offers high contrast ratio and outstanding gray‑scale performance.
Optional Curved Cabinet: Realize seamless curved / irregular splicing without curve‑lock accessories.
IP45 Protection Grade: Adapt to various complex indoor event environments.
Point‑by‑point Calibration: Support single‑point brightness & color correction for uniform screen visual effect.

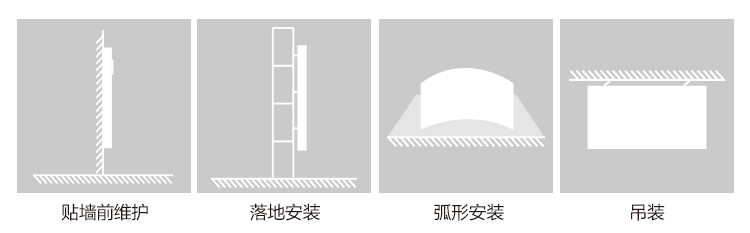

Dual‑way Installation & Rear Maintenance: Front‑rear installable, rear‑access maintenance for flexible site construction.

Typical Applications

Indoor stage performances, conferences & summits, press conferences, brand exhibitions, banquet background walls and other indoor rental video‑wall projects.

Package & Accessories

Packed in heavy‑duty flight case, 6 pcs 500×1000mm cabinets together with matching accessories per flight case.Supporting accessories include aviation power cables, aviation network cables, installation truss stands and professional power distribution cabinets for rental events.

Note: Specifications subject to change without prior notice. Vican reserves the right of final interpretation for product technical parameters.

Item	Parameter
Product Model	LED3000‑PH
Pixel Pitch	2.976 mm
Pixel Configuration	1R1G1B
Pixel Density	112896 dots/㎡
Module Size	250 × 250 mm
Module Resolution	84 × 84 dots
Cabinet Size	500×1000×70 mm, optional 500×500×70 mm
Cabinet Material	Die‑cast Aluminum
Scan Mode	1/28 Scan
Cabinet Flatness	≤0.10 mm
Gray Scale	14 bit
Protection Grade	IP45
Maintenance Mode	Front‑rear install / Rear maintenance
Brightness	≥600 cd/m²
Color Temperature	3200‑12000K adjustable
Brightness Uniformity	≥98%
Chromaticity Uniformity	Within 0.003Cx,Cy

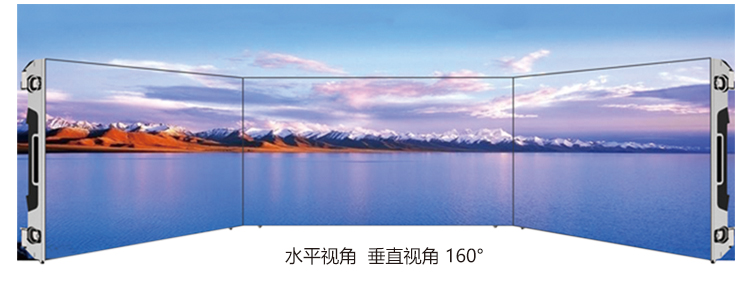

Viewing Angle(H/V)	≥160° / ≥140°
Contrast Ratio	≥5000:1
Single‑point Color Correction	Supported
Single‑point Brightness Correction	Supported
Driving Mode	Constant Current Driving
Module Max Current	8.5A/DC
Module Supply Voltage	4.5V/DC
Receiving Card	Nova / Colorlight optional
Frame Frequency	50/60Hz
Max Refresh Rate	≥3840Hz
Signal Interface	500‑M custom interface
Input AC Voltage	110‑220V
Peak Power Consumption	≤650 W/㎡
Average Power Consumption	≤200 W/㎡
Pixel Failure Rate	≤0.01%
Working Temperature	-20℃ ~ +80℃
Working Humidity	10%‑95% RH
