Universal Core Advantages of Full COB Series
1. Full Flip-chip COB 10-protection Technology, More Stable Performance

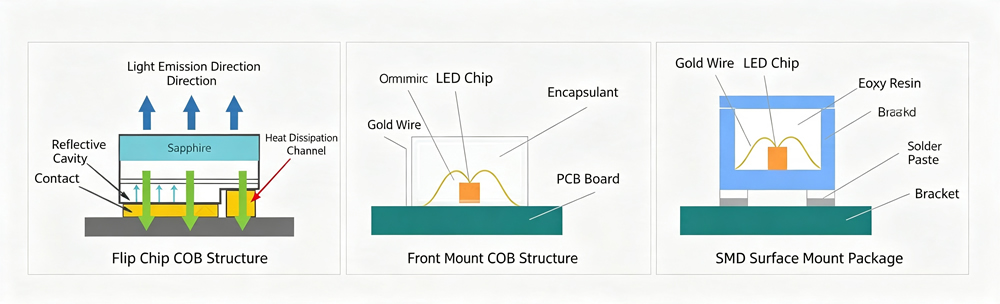

The entire Vican COB fine pitch series adopts cutting-edge full flip-chip COB integrated sealing structure. LED chips are directly bonded and fully sealed on the PCB substrate with integrated lens coverage, realizing ten core protections including waterproof, dustproof, moisture-proof, anti-collision, anti-static, anti-oxidation, anti-salt spray, anti-vibration, anti-scratch and anti-blue light. The matte fog surface is washable and wear-resistant, with no halo, color shift or light leakage. It supports 7×24-hour long-term uninterrupted heavy-duty operation, with far higher stability and environmental adaptability than traditional SMD screens.
2. Broadcast-level Ultra HD Display, Zero Particle Visual Effect
All series are equipped with 3840Hz ultra-high refresh rate and 16Bit high-precision grayscale processing, achieving smooth dark color transition and rich picture layering. No stroboscopic flicker or scanning black lines during mobile phone and professional camera shooting, meeting broadcast-level live broadcast and high-standard monitoring display requirements. The nano-level optical processing eliminates particle sense and jagged textures, presenting delicate, uniform and ultra-clear picture details even at close viewing distance.
3. Unified 16:9 Standard Cabinet, Seamless Splicing & Strong Compatibility

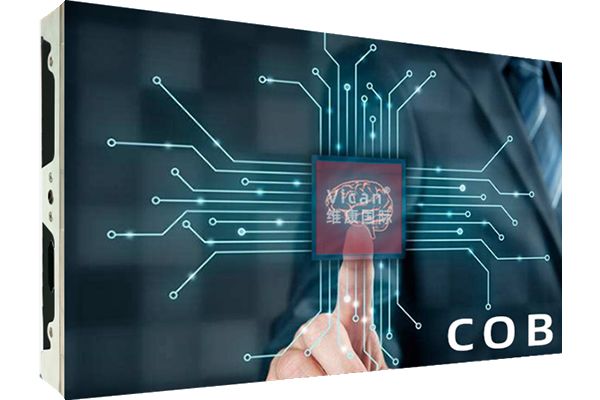

The full series adopts a unified 16:9 golden ratio die-cast aluminum cabinet (600*337.5mm / 600*675mm), which is highly compatible with mainstream ultra HD video signal sources and display control systems. The cabinet flatness is controlled within ≤0.1mm, realizing almost seamless splicing and integrated overall visual effect. The standardized cabinet design simplifies on-site installation and construction, shortens project cycle, and supports arbitrary combined splicing of different specifications to meet various wall size requirements.

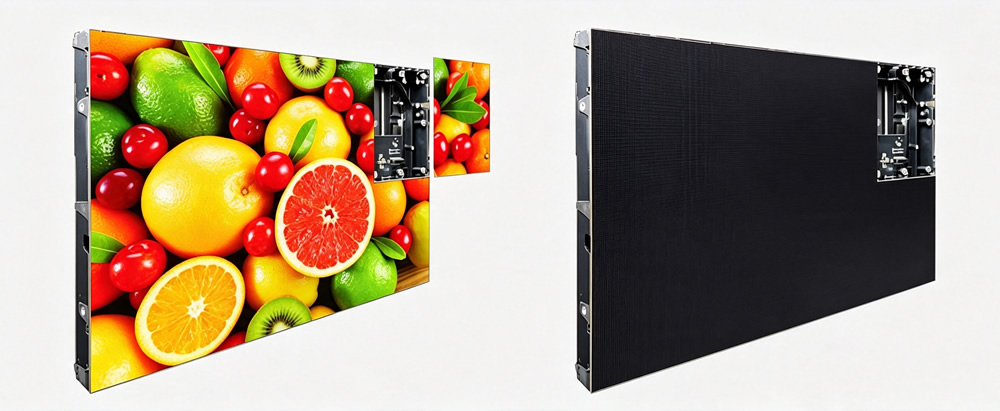

4. Full Front Maintenance, Low Operation and Maintenance Cost

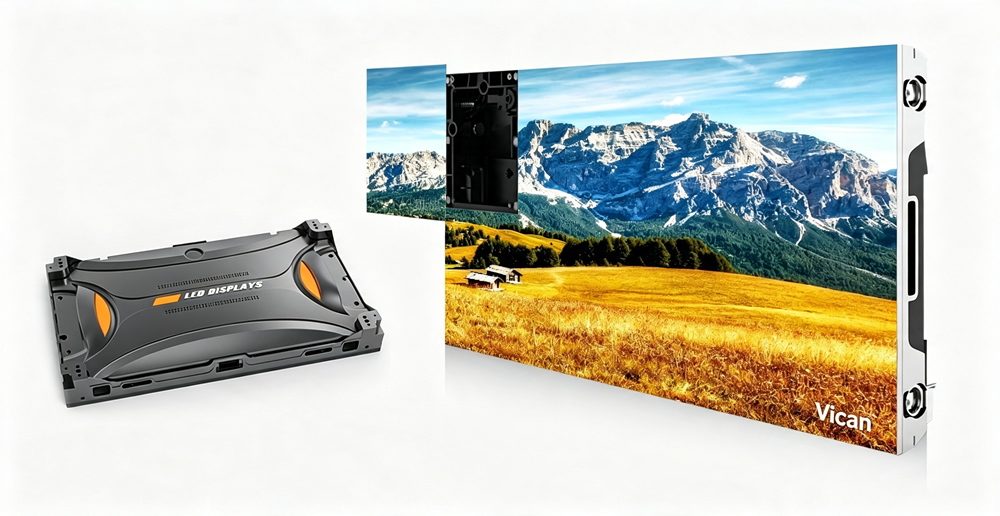

All COB series models support full front maintenance design, requiring no reserved rear operation space. It is suitable for embedded, wall-mounted, hoisting and floor-standing installation in various narrow indoor spaces. Daily module replacement, circuit inspection and equipment debugging can be completed by a single operator from the front, which greatly reduces later maintenance difficulty, labor cost and equipment downtime. The lightweight die-cast aluminum cabinet features high rigidity and deformation resistance, effectively reducing installation load.

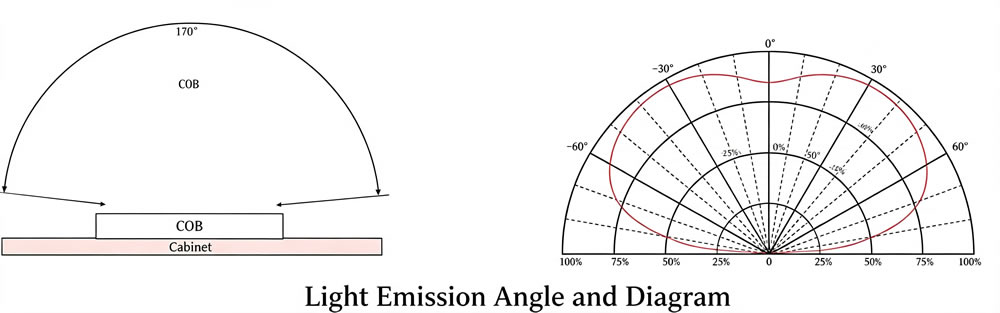

5. 175° Ultra-wide Viewing Angle, Consistent Color Presentation
Customized high-precision optical diffusion lens is adopted for the full series, achieving 175° ultra-wide viewing angle in both horizontal and vertical directions. It completely solves the problems of edge darkening and color deviation of traditional displays. The full-screen brightness uniformity is ≥98%, and the chromaticity deviation is controlled within 0.003Cx/Cy. The whole screen presents uniform and natural colors without color difference or color blocks, supporting 16.7M true color high-restoration display.
6. High Safety & Long Service Life, Maintenance-free Operation
The fully sealed COB structure avoids exposed welding points and lamp beads, fundamentally reducing common failures such as dead lamps and lamp falling. With excellent anti-static, anti-vibration and dust-proof capabilities, the full series adapts to long-term indoor stable operation. The overall service life is much longer than ordinary small-pitch LED screens, realizing long-term maintenance-free operation and effectively reducing project later-stage investment costs.

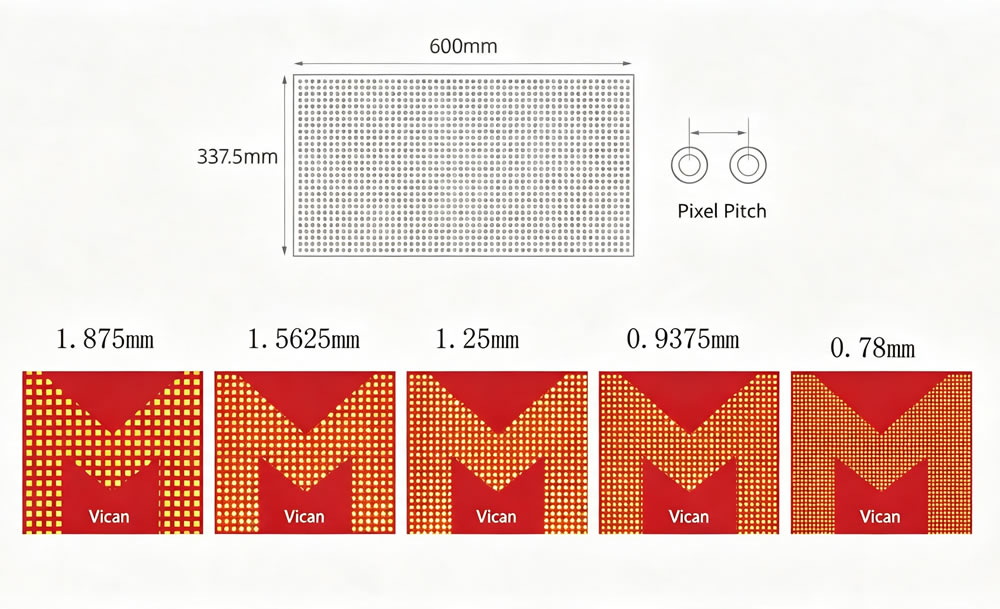

Full Series Model Classification & Scenario Matching
1. P0.78 COB (Top-tier Ultra 4K HD Premium Grade)

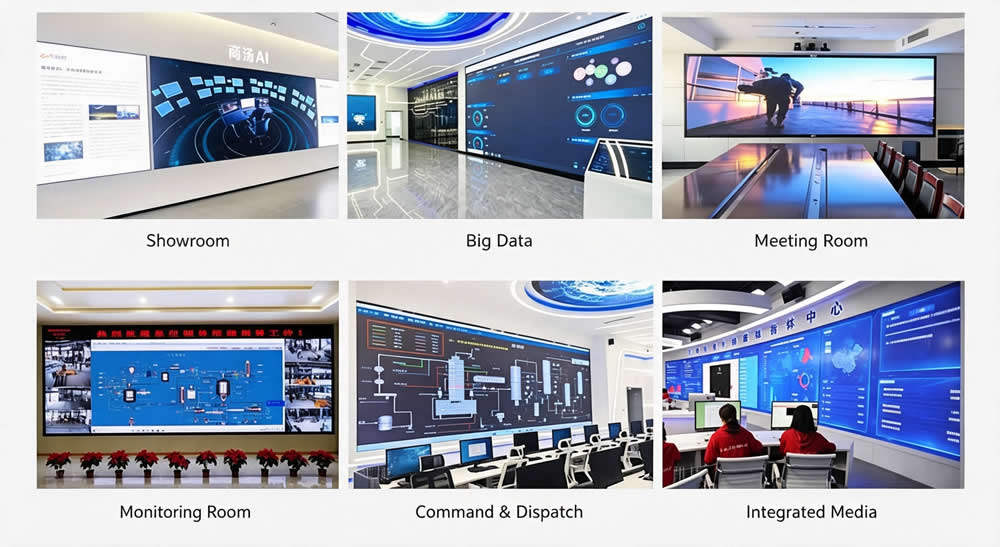

Pixel density: 1,651,322 dots/㎡, the highest definition of the entire series, achieving true 4K ultra-fine display effect. It is specially designed for zero-distance close viewing, top-level ultra-high definition display and professional-grade visual presentation projects. Mainly applied in super high-end smart city command centers, top urban brain operation platforms, professional radio and television live broadcast studios, high-standard government reception halls, luxury brand exhibition centers and high-end enterprise flagship digital exhibition halls.
2. P0.9375 COB (Ultra HD Premium Grade)
Pixel density: 1,137,777 dots/㎡, ultra-high definition grade in the series. It is suitable for zero-distance close viewing scenarios and high-standard ultra HD display projects. Mainly applied in high-end smart city command centers, urban super brain platforms, professional radio and television studios, high-grade government reception halls and top enterprise digital exhibition centers.
3. P1.25 COB (High HD High-end Grade)
Pixel density: 640,000 dots/㎡, balanced definition and cost performance. It is the mainstream high-end ultra HD display model. Widely used in emergency dispatching centers, media convergence centers, medium and high-end conference rooms, smart park monitoring platforms and commercial high-definition display walls.
4. P1.5625 COB (Practical HD Grade)
Pixel density: 640,000 dots/㎡, balanced definition and cost performance. It is the mainstream high-end ultra HD display model. Widely used in emergency dispatching centers, media convergence centers, medium and high-end conference rooms, smart park monitoring platforms and commercial high-definition display walls.
Pixel density: 409,600 dots/㎡, stable and cost-effective. It meets most indoor high-definition display needs. Suitable for security monitoring centers, enterprise multi-functional conference rooms, government service halls, digital exhibition display and smart campus display scenarios.
5. P1.875 COB (Economical Practical Grade)
Pixel density: 409,600 dots/㎡, stable and cost-effective. It meets most indoor high-definition display needs. Suitable for security monitoring centers, enterprise multi-functional conference rooms, government service halls, digital exhibition display and smart campus display scenarios.
Pixel density: 284,444 dots/㎡, high cost performance and strong practicability. It is the preferred model for conventional indoor fine pitch display projects. Mainly used for office lobby display walls, community service centers, indoor public information release, ordinary enterprise conference rooms and conventional monitoring display scenarios.
Manufacturer Universal Advantages
1. Mature Mass Production & Complete Qualifications
Vican has long-term professional R&D and mass production experience in full flip-chip COB fine pitch LED displays. The full series of products have stable production processes, high yield rate and consistent quality. All models have passed authoritative national and international tests, with complete 3C, EMC CLASS-A, ROHS, energy-saving certifications and related technical patents, fully meeting the bidding and acceptance standards of various government and commercial engineering projects.
2. Factory Direct Supply & Customized Solutions
As an original LED display manufacturer, we independently complete the whole process of COB packaging, R&D, production, assembly and point-by-point color calibration for the full series. No middleman markup, ensuring high cost performance of products. We support personalized scheme optimization, size customization and function matching according to on-site installation environment and project needs, providing targeted one-stop display solutions.
3. Full-lifecycle Turnkey Engineering Service
We provide full-process closed-loop services for all COB series projects: pre-sales free on-site survey, professional scheme design and accurate budget quotation; in-sales standardized production, strict quality inspection and professional on-site installation and debugging; after-sales lifelong technical support, rapid fault response and regular equipment maintenance. We fully cooperate with document sorting and project acceptance to solve all customer procurement and engineering problems.
